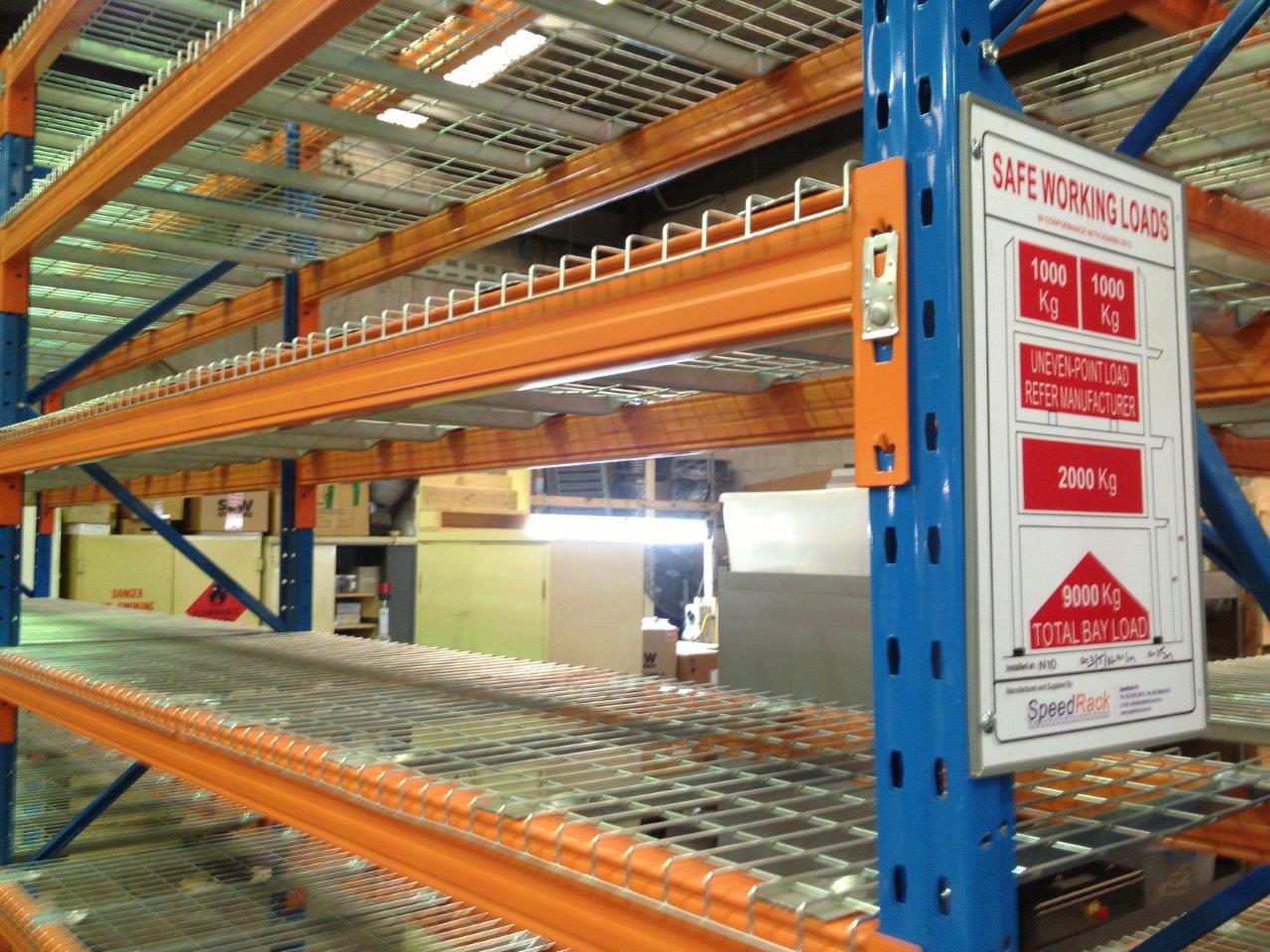

Mesh Decks for Pallet Racking

SpeedRack supply all sizes of Steel Mesh Decks and Manta Mesh for Pallet Racking and Long Span Shelving.

Our Decks fit all Brands of Pallet Racking and Long Span Shelving, including Speedrack, Dexion, Colby, SSI Schaefer, APC, Brownbuilt, Stow,  Acrow, Macrack, Spacerack, AceRack.

Stand Decks are either 1250mm wide or 1350mm wide. The Mesh Decks are designed so that two decks 1250mm wide fit onto a 2600mm wide pallet racking beam, Or two 1350mm Wide Decks are used on a 2740mm wide Pallet Racking beam. The 1350mm wide Mesh Decks are also used for 1372mm wide and 1519mm wide Pallet Racking beams.



Pallets are able to be placed on the Decks so that the Mesh Provide a solid surface to support Pallets. They are particularly used for Odd Shaped Pallets, such as Euro Pallets. The Mesh makes it easy to place Pallets onto the Pallet Racking and Prevents accidental dislodgement.



Mesh decks also turn pallet Racking into Long Span Shelving. By adding some Manta Mesh to Pallet Racking beams, it creates a storage level where goods are easily picked an packed, While goods are Bulk stored on teh Pallets Above.



The Mesh Decks have different weight bearing capabilities which is governed by the thickness of the wire and the number of supports in each Deck.



  • A 250kg Deck has Two Steel Supports under the wire, and is designed to hold a pallets weighing 250kg, or if two decks are used on one shelf, then they will hold a combined 500kg Uniformly Distributed.



  • A 500kg Deck has Three Steel Supports under the wire, and is designed to hold a pallets weighing 500kg, or if two decks are used on one shelf, then they will hold a combined 1000kg Uniformly Distributed.



  • A 1000kg Deck has Four Steel Supports under the wire, and is designed to hold a pallets weighing 1000kg, or if two decks are used on one shelf, then they will hold a combined 2000kg Uniformly Distributed.



We are dedicated to Offering the Cheapest Prices of Quality Products and linking them with fast and Affordable Delivery to all States and territories of Australia.



We Custom make decks for Applications such as Archive Box Storage, or double Deep racks.



We offer Australia Wide Delivery at the click of a button.



https://www.meshdecks.com.au/product-category/used-mesh-decks/

If you need Pallet Racking or Long Span Shelving to go with your Manta Mesh, please visit our Racking and Longspan Shelving Store.
